Home / FABRICATION / CPT Reverse Shackle Kit for 1971-80 Scout II, Terra or Traveler

CPT Reverse Shackle Kit for 1971-80 Scout II, Terra or Traveler

Other Views

Choose Shackle Length:

	5" Shackle
	6" Shackle

Part #: CPT-RVRS-SHKL-KIT
Price: $319.95
Shipping Weight: 28.00 pounds
Quantity in Basket: None
Quantity:

Description

CPT Crawler Proven Technology Reverse Shackle kits are fairly easy to install and significantly improve ride quality.

Designed for ALL 1971-80 Scout II, Terra or Traveler with stock or 2"-4" lift leaf springs.

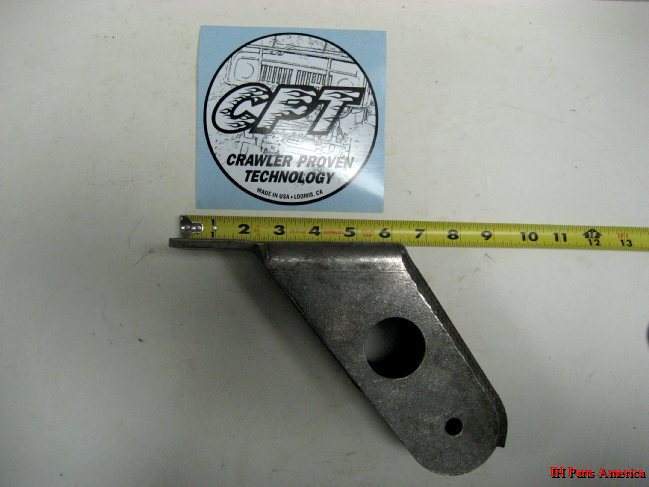

Fangs are for a 2" wide leaf spring and no taller than a standard lift shackle once installed. Angled design of front leaf spring hanger allows front axle to be moved slightly forward to keep the tire from hitting the rear of the front fender well yet allows stock bumper to stay untouched in the stock location if desired.

This is a shackle thru frame design. A holesaw and pilot drill bit are included in the kit in order to drill holes in the frame for the shackle bushing sleeve.

This reverse shackle kit will greatly improves ride quality on road yet will absorb those hard bumps off road. For better ride quality on the street or for your rock crawler this kit will work for almost any application.

Includes all Grade 8 hardware. This kit comes with either 5" or 6" long custom made shackles. We recommend 5" shackles for on-road use and 6" shackles for offroad use.

Will work on stock spring under axle or spring over axle suspension.

Welding Required.

New long travel front driveshaft highly recommended and available for purchase on our store.

MADE IN THE USA.

Customer Reviews

Average Customer Review: 5 out of 5

3 Reviews
Write an online review and share your thoughts with others.

Love the change

Submitted by: Rob Ellingson (DALLAS, TX)

It was a ton of work, but I love driving my Scout now. It looks and handles way better than before. The kit is high quality like all CPT items. Glad I decided to take a chance on it.

Great Kit

Submitted by: Brandon H (Phoeonix, AZ)

The Kit really does come with everything you need. Installation only took a few days working on it a few hours after work each day. It was also easy enough for me use the kit to move my front axle forward a few inches so i didn’t have to cut the body on my scout. Thanks guys great product!

Awesome

Submitted by: Kimball Combs (El Cerrito, CA)

Handles great, both on and off road. The two kits I have installed so far it seemed to have help solve a lot of the normal wander on the highway. Almost as if the Scout handles like a cadillac on steroids. Fairly straight forward intall. Roughly one to three day install depending on number of breaks.
